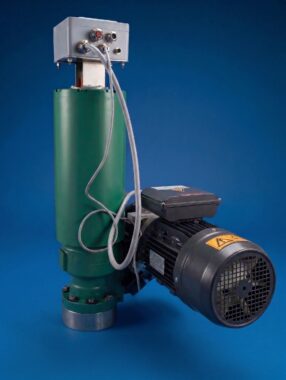

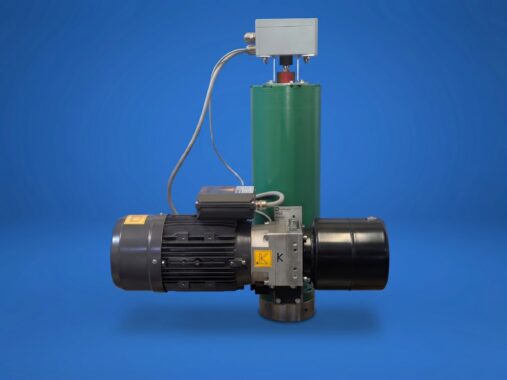

QTY: 1 Electric hydraulic powerpack with SG1000 L 210 Actuator

This includes the following:

  • Electric hydraulic unit
  • Adapter plate to connect the SG 1000 L 210 Actuator
  • Control box fitted to the electric hydraulic unit.

Functionality:

  • Local Control
  • Open
  • Close

Technical Specification:

  • 1.600Nm (@210 Bar BTO)
  • 1.000Nm (@210 Bar ETO)
  • 1.000Nm (Spring ETC)
  • Working pressure 210 Bar
  • Power connection 2.2kW 110V 4P, (E.M.G motor from UK)
  • Open close time 3.5 sec over full stroke.

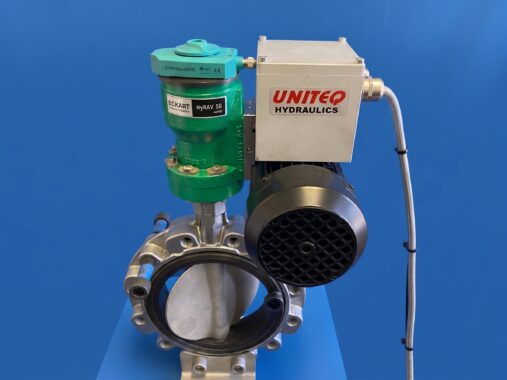

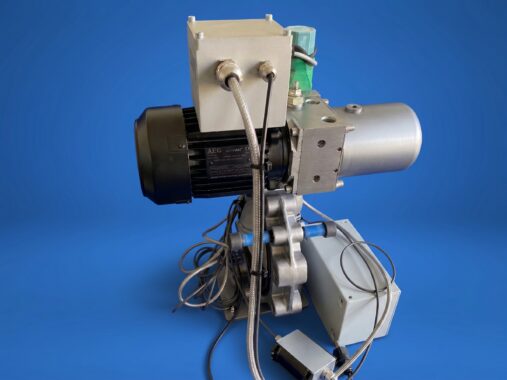

QTY: 1 Electric hydraulic powerpack with SG1000D Actuator

This includes the following:

  • Electric hydraulic unit
  • Adapter plate to connect the SG 1000 D Actuator
  • Control box fitted to the electric hydraulic unit.

Functionality:

  • Local Control
  • Open
  • Close

Technical Specification:

  • 1.000Nm (@210bar)
  • Working pressure 210 Bar
  • Power connection 1.5kW 110V 4P, (E.M.G motor from UK)
  • Open close time 4 sec over full stroke.

TypePerformanceValve Attachment Flange EN ISO 5211Hallow shaft
with
feather key		Hallow shaft
with
square
HyRAVTorque      [Nm]power      [W] Remote    [sec]Fail Safe    [sec]StandardOptions[mm][mm]
SG 1000 D100040…550230/400VAC,3P, 50/60Hz7….49 F12F10-F12-F14max. Ø 42 H9max. ◊ 36 H11
SG 1000 L 2101000 ETO /
1000 ETC		40…550230/400VAC,3P, 50/60Hz7….49< 0,5F12F10-F12-F14max. Ø 42 H9max. ◊ 36 H11

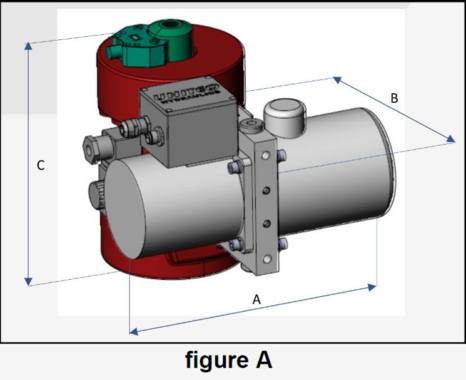

Dimensions (See figure A)
TypeDim ADim BDim C
HyRAV [mm] [mm] [mm]
SG 1000 D622173228
SG 1000 L 210667178637
